MTS Off-Road Shock Body Wear Sleeve Kit w/ Crossover Rings

SKU: WSK-25A-300
(0)
$175.00
Shock Manufacturer
Shock Size & Spring Size (Check Description for Sizing Chart)

Got questions?
Our Wisco Powersports team is here to help. Reach out anytime and we’ll get you the answers you need before you buy.

Looking for warranty information?
Visit our Warranty & Guarantees page for details on manufacturer warranties, coverage, and how claims are handled.

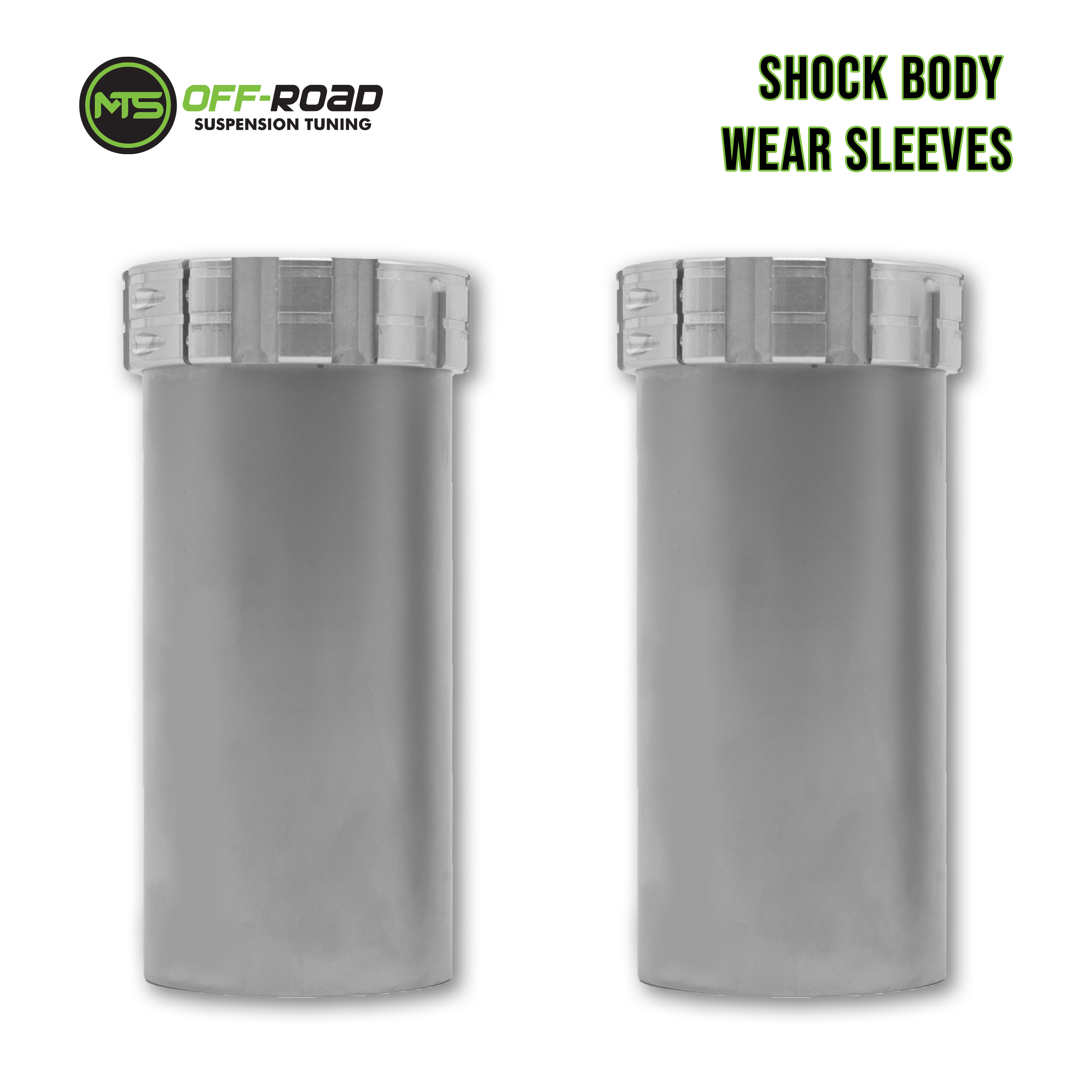

Shock Body Protective Wear Sleeve – Metal Guard w/ Crossover Ring

Protect your shocks with the MTS Shock Body Wear Sleeve – a premium metal sleeve designed to shield your shock body from damaging wear caused by springs and spring dividers. This durable, precision-fit sleeve slides over the shock body and acts as a barrier, preserving the integrity of your suspension under the harshest conditions.

Manufactured to exacting standards, it offers a clean fit, reliable performance, and long-term protection for high-performance off-road shocks.

Key Features:

  • Protects shock bodies from direct contact with springs and dividers

  • Machined for a snug, slip-on installation

  • Built from high-strength metal for durability and impact resistance

  • Designed in collaboration with Fox using their patented concept

Included:

  • (2) Metal MTS Wear Sleeves
  • (2) Billet 2-Piece Crossover Rings
  • (16) Crossover Ring Bolts
  • (2) Spring Dividers
Shock Size Guide for MTS Offroad Wear Sleeve Kits

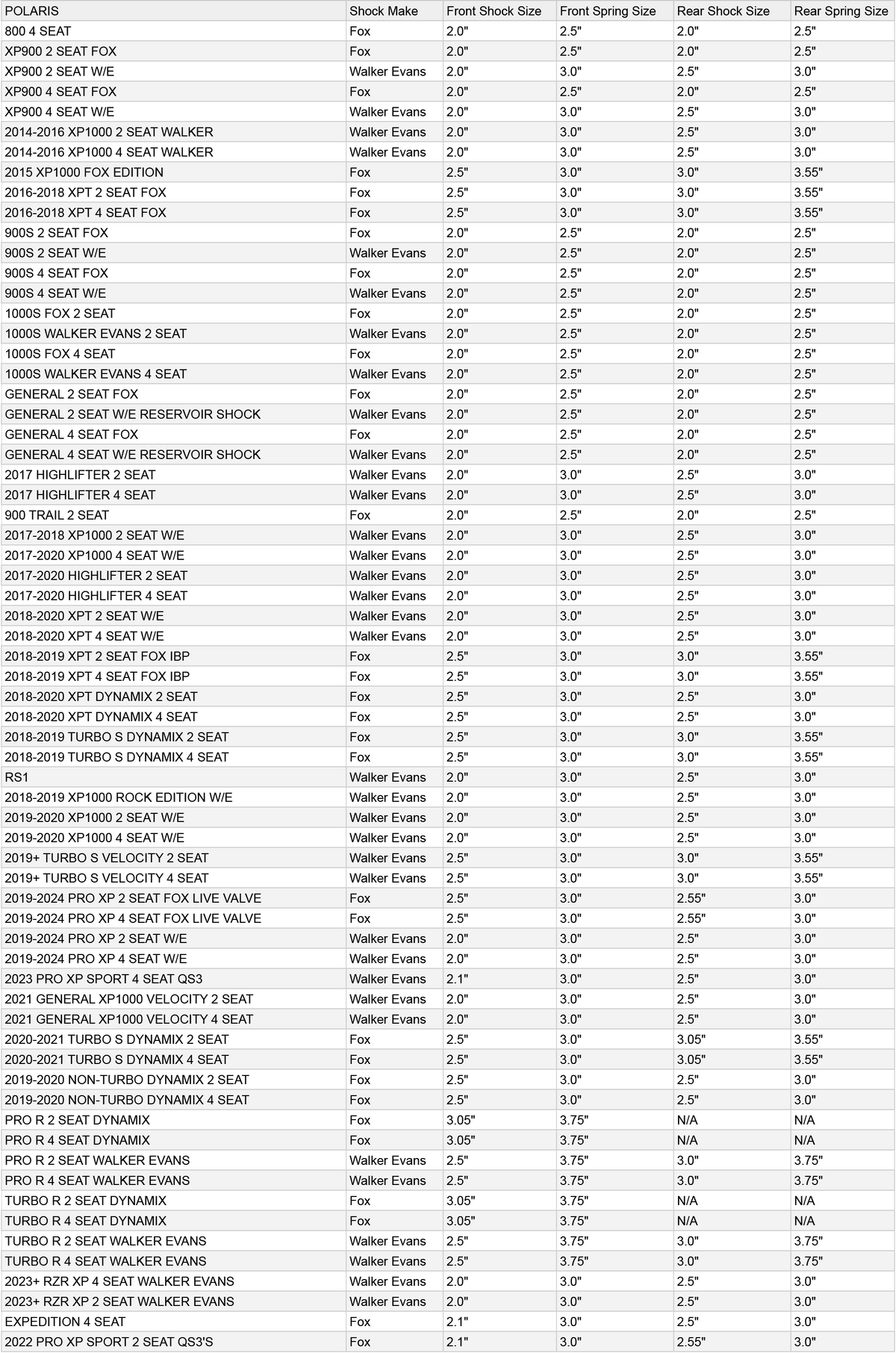

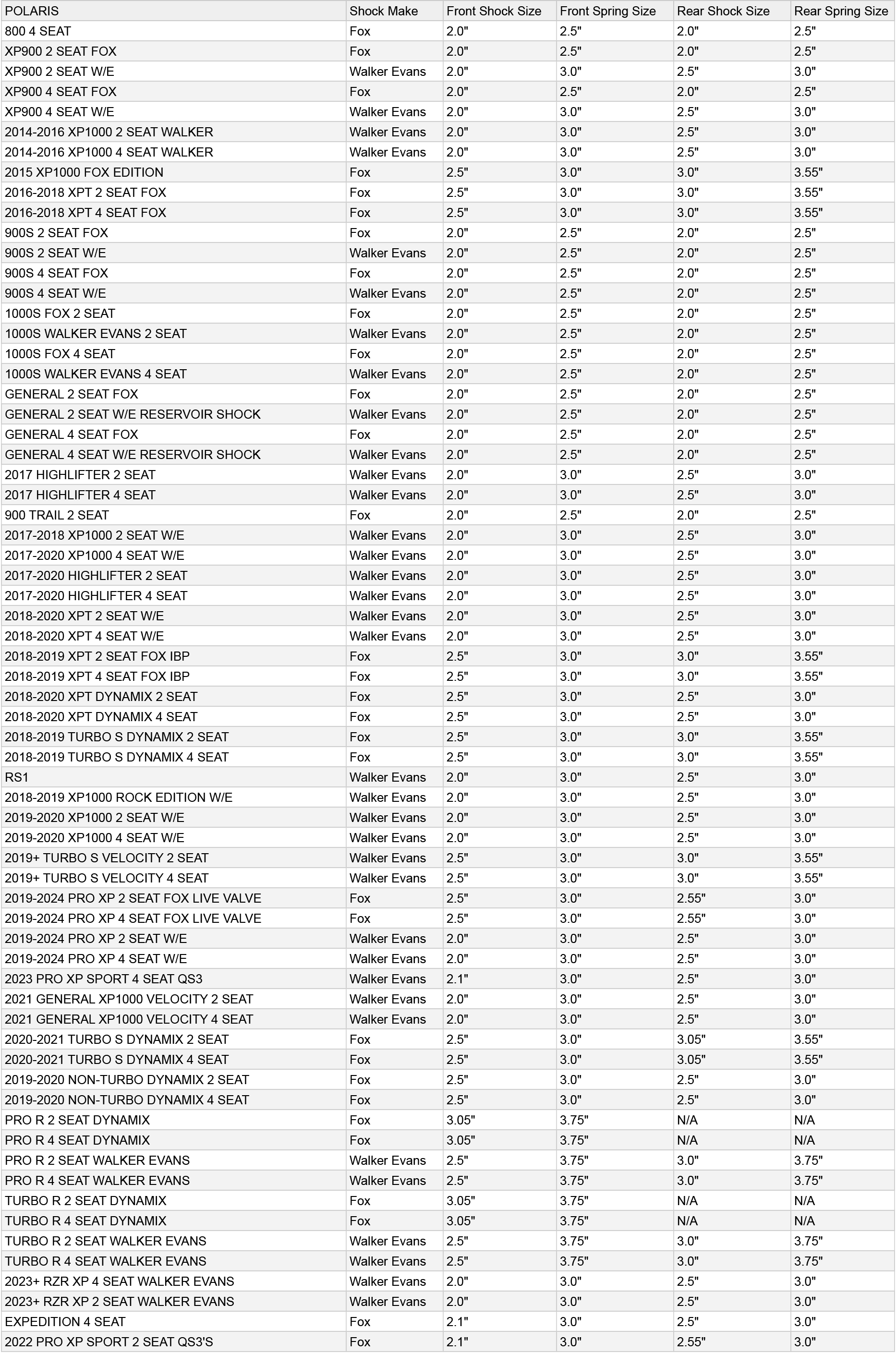

POLARIS Shock Make Front Shock Size Front Spring Size Rear Shock Size Rear Spring Size
800 4 SEAT Fox 2.0" 2.5" 2.0" 2.5"
XP900 2 SEAT FOX Fox 2.0" 2.5" 2.0" 2.5"
XP900 2 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
XP900 4 SEAT FOX Fox 2.0" 2.5" 2.0" 2.5"
XP900 4 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2014-2016 XP1000 2 SEAT WALKER Walker Evans 2.0" 3.0" 2.5" 3.0"
2014-2016 XP1000 4 SEAT WALKER Walker Evans 2.0" 3.0" 2.5" 3.0"
2015 XP1000 FOX EDITION Fox 2.5" 3.0" 3.0" 3.55"
2016-2018 XPT 2 SEAT FOX Fox 2.5" 3.0" 3.0" 3.55"
2016-2018 XPT 4 SEAT FOX Fox 2.5" 3.0" 3.0" 3.55"
900S 2 SEAT FOX Fox 2.0" 2.5" 2.0" 2.5"
900S 2 SEAT W/E Walker Evans 2.0" 2.5" 2.0" 2.5"
900S 4 SEAT FOX Fox 2.0" 2.5" 2.0" 2.5"
900S 4 SEAT W/E Walker Evans 2.0" 2.5" 2.0" 2.5"
1000S FOX 2 SEAT Fox 2.0" 2.5" 2.0" 2.5"
1000S WALKER EVANS 2 SEAT Walker Evans 2.0" 2.5" 2.0" 2.5"
1000S FOX 4 SEAT Fox 2.0" 2.5" 2.0" 2.5"
1000S WALKER EVANS 4 SEAT Walker Evans 2.0" 2.5" 2.0" 2.5"
GENERAL 2 SEAT FOX Fox 2.0" 2.5" 2.0" 2.5"
GENERAL 2 SEAT W/E RESERVOIR SHOCK Walker Evans 2.0" 2.5" 2.0" 2.5"
GENERAL 4 SEAT FOX Fox 2.0" 2.5" 2.0" 2.5"
GENERAL 4 SEAT W/E RESERVOIR SHOCK Walker Evans 2.0" 2.5" 2.0" 2.5"
2017 HIGHLIFTER 2 SEAT Walker Evans 2.0" 3.0" 2.5" 3.0"
2017 HIGHLIFTER 4 SEAT Walker Evans 2.0" 3.0" 2.5" 3.0"
900 TRAIL 2 SEAT Fox 2.0" 2.5" 2.0" 2.5"
2017-2018 XP1000 2 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2017-2020 XP1000 4 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2017-2020 HIGHLIFTER 2 SEAT Walker Evans 2.0" 3.0" 2.5" 3.0"
2017-2020 HIGHLIFTER 4 SEAT Walker Evans 2.0" 3.0" 2.5" 3.0"
2018-2020 XPT 2 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2018-2020 XPT 4 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2018-2019 XPT 2 SEAT FOX IBP Fox 2.5" 3.0" 3.0" 3.55"
2018-2019 XPT 4 SEAT FOX IBP Fox 2.5" 3.0" 3.0" 3.55"
2018-2020 XPT DYNAMIX 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2018-2020 XPT DYNAMIX 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2018-2019 TURBO S DYNAMIX 2 SEAT Fox 2.5" 3.0" 3.0" 3.55"
2018-2019 TURBO S DYNAMIX 4 SEAT Fox 2.5" 3.0" 3.0" 3.55"
RS1 Walker Evans 2.0" 3.0" 2.5" 3.0"
2018-2019 XP1000 ROCK EDITION W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2019-2020 XP1000 2 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2019-2020 XP1000 4 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2019+ TURBO S VELOCITY 2 SEAT Walker Evans 2.5" 3.0" 3.0" 3.55"
2019+ TURBO S VELOCITY 4 SEAT Walker Evans 2.5" 3.0" 3.0" 3.55"
2019-2024 PRO XP 2 SEAT FOX LIVE VALVE Fox 2.5" 3.0" 2.55" 3.0"
2019-2024 PRO XP 4 SEAT FOX LIVE VALVE Fox 2.5" 3.0" 2.55" 3.0"
2019-2024 PRO XP 2 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2019-2024 PRO XP 4 SEAT W/E Walker Evans 2.0" 3.0" 2.5" 3.0"
2023 PRO XP SPORT 4 SEAT QS3 Walker Evans 2.1" 3.0" 2.5" 3.0"
2021 GENERAL XP1000 VELOCITY 2 SEAT Walker Evans 2.0" 3.0" 2.5" 3.0"
2021 GENERAL XP1000 VELOCITY 4 SEAT Walker Evans 2.0" 3.0" 2.5" 3.0"
2020-2021 TURBO S DYNAMIX 2 SEAT Fox 2.5" 3.0" 3.05" 3.55"
2020-2021 TURBO S DYNAMIX 4 SEAT Fox 2.5" 3.0" 3.05" 3.55"
2019-2020 NON-TURBO DYNAMIX 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2019-2020 NON-TURBO DYNAMIX 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
PRO R 2 SEAT DYNAMIX Fox 3.05" 3.75" N/A N/A
PRO R 4 SEAT DYNAMIX Fox 3.05" 3.75" N/A N/A
PRO R 2 SEAT WALKER EVANS Walker Evans 2.5" 3.75" 3.0" 3.75"
PRO R 4 SEAT WALKER EVANS Walker Evans 2.5" 3.75" 3.0" 3.75"
TURBO R 2 SEAT DYNAMIX Fox 3.05" 3.75" N/A N/A
TURBO R 4 SEAT DYNAMIX Fox 3.05" 3.75" N/A N/A
TURBO R 2 SEAT WALKER EVANS Walker Evans 2.5"  3.75" 3.0" 3.75"
TURBO R 4 SEAT WALKER EVANS Walker Evans 2.5" 3.75" 3.0" 3.75"
2023+ RZR XP 4 SEAT WALKER EVANS Walker Evans 2.0" 3.0" 2.5" 3.0"
2023+ RZR XP 2 SEAT WALKER EVANS Walker Evans 2.0" 3.0" 2.5" 3.0"
EXPEDITION 4 SEAT Fox 2.1" 3.0" 2.5" 3.0"
2022 PRO XP SPORT 2 SEAT QS3'S Fox 2.1" 3.0" 2.55" 3.0"
EXPEDITION 4 SEAT W/ THUMPER FAB LONG TRAVEL Fox 2.1" 3.0" 2.55" 3.0"

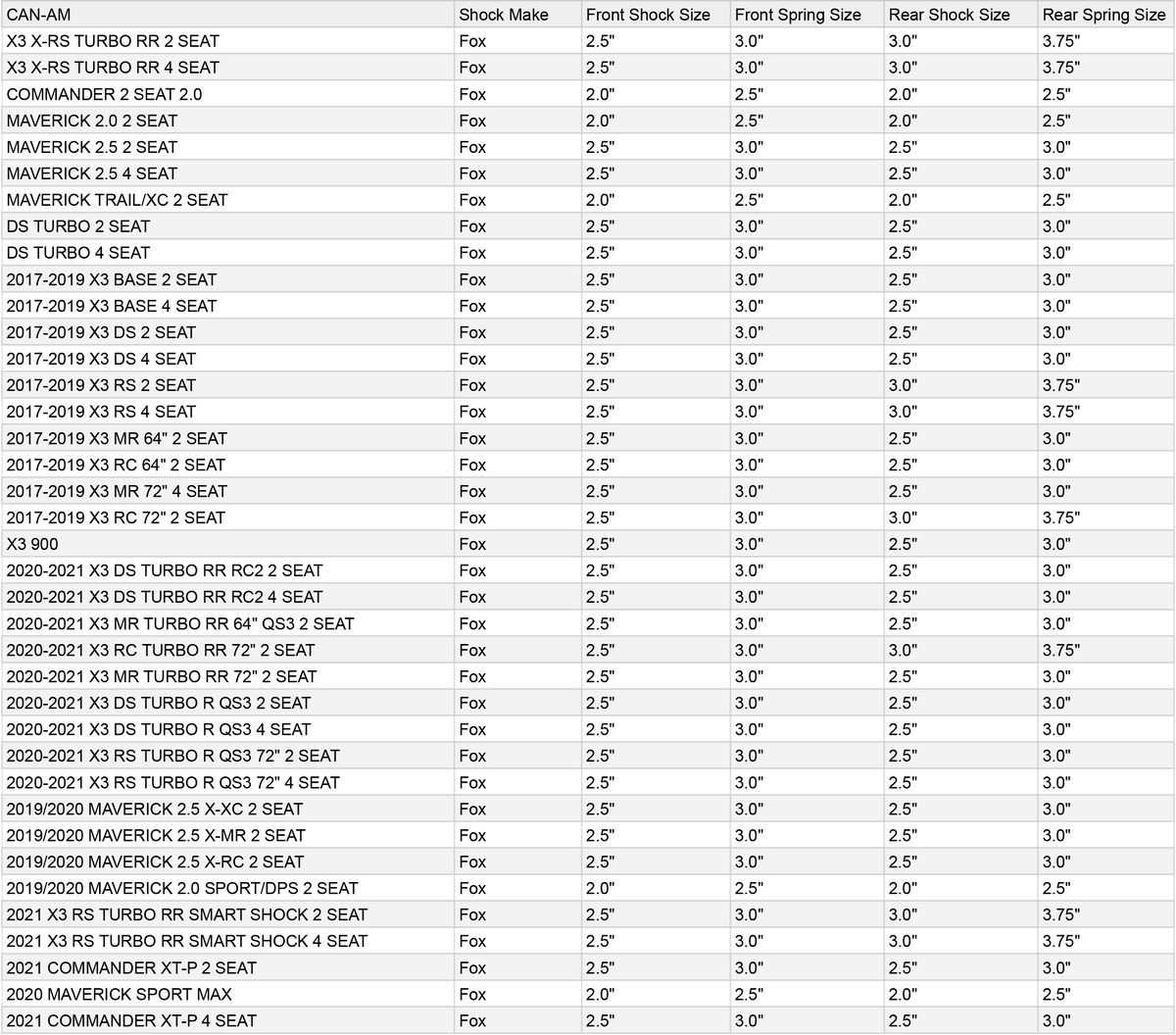

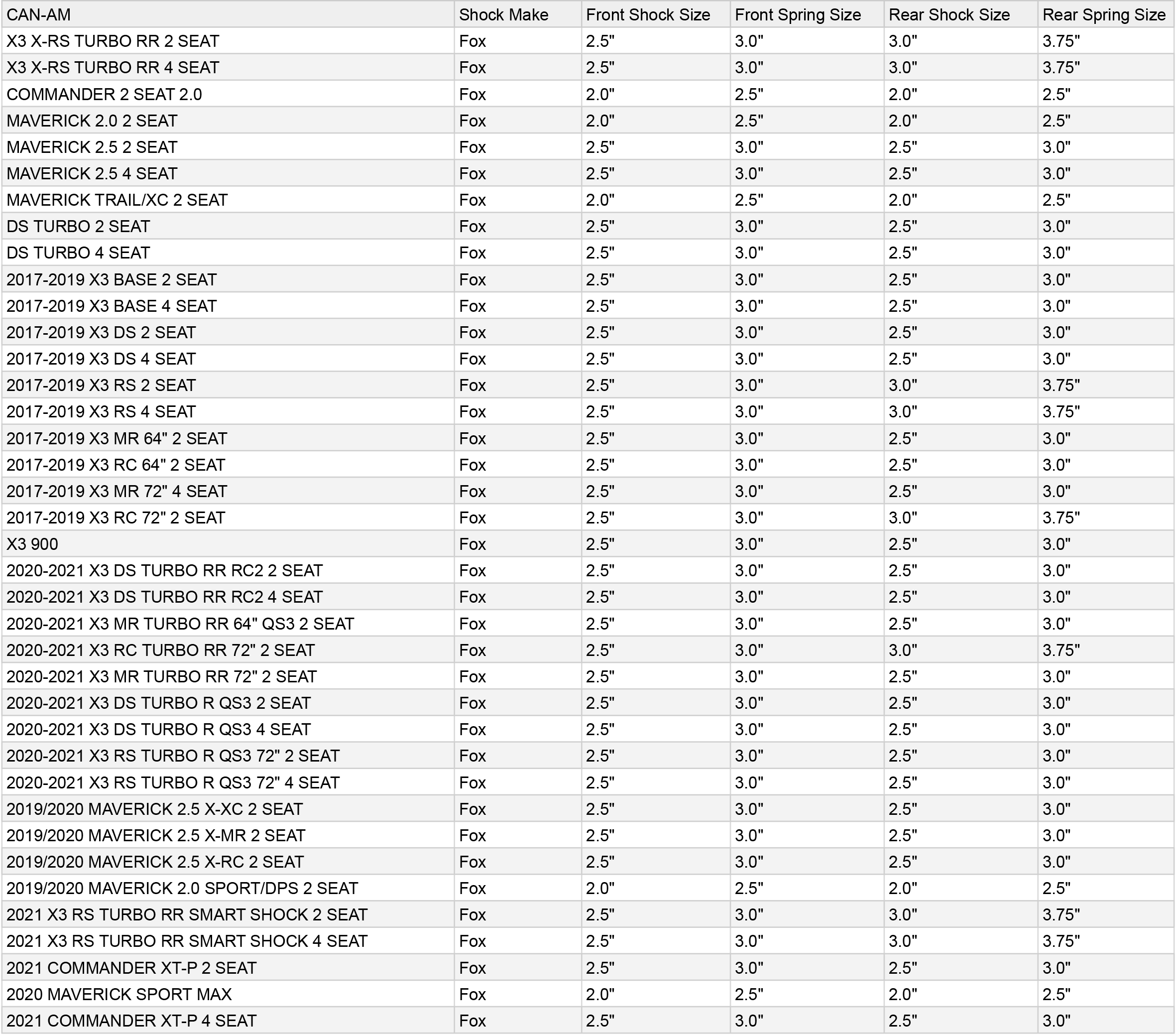

CAN-AM Shock Make Front Shock Size Front Spring Size Rear Shock Size Rear Spring Size
COMMANDER 2 SEAT 2.0 Fox 2.0" 2.5" 2.0" 2.5"
MAVERICK 2.0 2 SEAT Fox 2.0" 2.5" 2.0" 2.5"
MAVERICK 2.5 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
MAVERICK 2.5 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
MAVERICK TRAIL/XC 2 SEAT Fox 2.0" 2.5" 2.0" 2.5"
DS TURBO 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
DS TURBO 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 BASE 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 BASE 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 DS 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 DS 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 RS 2 SEAT Fox 2.5" 3.0" 3.0" 3.75"
2017-2019 X3 RS 4 SEAT Fox 2.5" 3.0" 3.0" 3.75"
2017-2019 X3 MR 64" 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 RC 64" 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 MR 72" 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2017-2019 X3 RC 72" 2 SEAT Fox 2.5" 3.0" 3.0" 3.75"
X3 900 Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 DS TURBO RR RC2 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 DS TURBO RR RC2 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
X3 RS TURBO RR 2 SEAT Fox 2.5" 3.0" 3.0" 3.75"
X3 RS TURBO RR 4 SEAT Fox 2.5" 3.0" 3.0" 3.75"
2020-2021 X3 MR TURBO RR 64" QS3 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 RC TURBO RR 72" 2 SEAT Fox 2.5" 3.0" 3.0" 3.75"
2020-2021 X3 MR TURBO RR 72" 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 DS TURBO R QS3 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 DS TURBO R QS3 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 RS TURBO R QS3 72" 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020-2021 X3 RS TURBO R QS3 72" 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2019/2020 MAVERICK 2.5 X-XC 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2019/2020 MAVERICK 2.5 X-MR 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2019/2020 MAVERICK 2.5 X-RC 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2019/2020 MAVERICK 2.0 SPORT/DPS 2 SEAT Fox 2.0" 2.5" 2.0" 2.5"
2021 X3 RS TURBO RR SMART SHOCK 2 SEAT Fox 2.5" 3.0" 3.0" 3.75"
2021 X3 RS TURBO RR SMART SHOCK 4 SEAT Fox 2.5" 3.0" 3.0" 3.75"
2021 COMMANDER XT-P 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
2020 MAVERICK SPORT MAX Fox 2.0" 2.5" 2.0" 2.5"
2021 COMMANDER XT-P 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
YAMAHA Shock Make Front Shock Size Front Spring Size Rear Shock Size Rear Spring Size
YXZ 1000R BASE RC2 Fox 2.5" 3.0" 2.5" 3.0"
YXZ 1000R SS OR SE X2 Fox 2.5" 3.0" 2.5" 3.0"
WOLVERINE RMAX 1000/SPEC/XT-R 2 SEAT Fox 2.1" 2.5" 2.1" 2.5"
WOLVERINE RMAX 1000/SPEC/XT-R 4 SEAT Fox 2.1" 2.5" 2.1" 2.5"
RMAX LIMITED 2 SEAT Fox 2.1" 2.5" 2.1" 2.5"
RMAX LIMITED 4 SEAT Fox 2.1" 2.5" 2.1" 2.5"
RMAX SPORT 2 SEAT KIT Fox 2.1" 2.5" 2.1" 2.5"
TEXTRON Shock Make Front Shock Size Front Spring Size Rear Shock Size Rear Spring Size
WILDCAT XX 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
KAWASAKI Shock Make Front Shock Size Front Spring Size Rear Shock Size Rear Spring Size
KRX 2 SEAT Fox 2.55" 3.0" N/A N/A
KRX 2 SEAT LIVE VALVE Fox 2.55" 3.0" N/A N/A
KRX 4 SEAT LIVE VALVE Fox 2.55" 3.0" N/A N/A
KRX 4 SEAT Fox 2.55" 3.0" N/A N/A
HONDA Shock Make Front Shock Size Front Spring Size Rear Shock Size Rear Spring Size
TALON 1000R 4 SEAT Fox 2.5" 3.0" 2.5" 3.0"
TALON 1000X 2 SEAT Fox 2.0" 2.5" 2.0" 2.5"
TALON 1000R 2 SEAT Fox 2.5" 3.0" 2.5" 3.0"
TALON 1000X LIVE VALVE 4 SEAT Fox 2.5" 3.0" 2.55" 3.0"
TALON 1000X 4 SEAT Fox 2.0" 2.5" 2.55" 3.0"
TALON 1000R 2 SEAT LIVE VALVE Fox 2.5" 3.0" 2.55" 3.0"
TALON 1000X 2 SEAT LIVE VALVE Fox 2.5" 3.0" 2.55" 3.0"
2021+ TALON 1000X NON LIVE VALVE Fox 2.0" 2.5" 2.0" 2.5"
TALON 1000R 4 SEAT LIVE VALVE Fox 2.5" 3.0" 2.55" 3.0"
